| LED Color | White |
| LED Color Temperature | 6500K |
| LED CRI level | 80 |
| Quantity of white LED | 96*1W |
| Quantity of tri LED | 384*0.5W |
| Dimming frequency | 600/1200/2400/4800/9600/18000HZ |
| Dimmer resolution | 16bit |
| Optical DMX Channel Range | 3/9/22/36/50/92CH |
| Beam angle | 90° |
| Output @1M | 9000 lux |
| Output @5M | 600lux |
| Heat management Cooling type | Passive cooling |
| MAX. Ambient temp (Ta max) | 40°C |
| MIN. Ambient temp (Ta min) | -20°C |
| MAX housing temp.(ta=25℃) | 58.5°C |
| MAX housing temp.(ta=40℃) | 67°C |

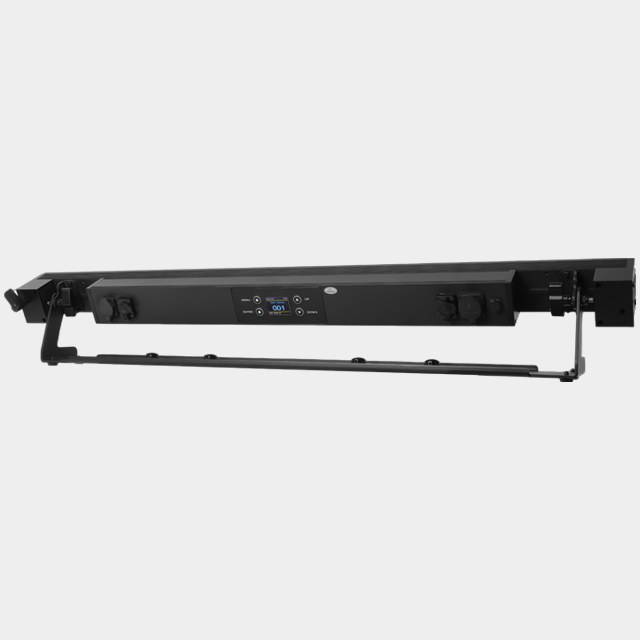

| Interface TFT displayer | present |
| Software upload method | XLR |
| Installation Orientation | Any |
| IP rating | IP65 |
| Net product weight | 6 kg |
| Machine Dimensions – Length | 1000 mm |
| Machine Dimensions – Width | 90 mm |
| Machine Dimensions – Height | 113 mm |

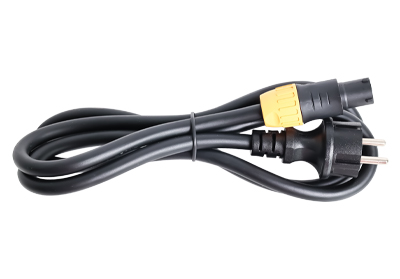

| Included items | Power cable, Manual |
| Approved certifications | CE, RoHS |
| Auto program | Yes |
| Static Color | Yes |
| Manual Calibration | No |
| Factory calibration | No |
| Strobe speed | 0 – 20Hz |
| Effects | Yes |
| Control Protocol | USITT DMX512/1990 |
| RDM | Yes |
| RDM compliance | ANSI/ESTA E.120 |
| WDMX | Optional |
| DMX input connection | DMX 5 pin in & out |
| Electricity Input Voltage & Rate | 100-240VAC, 50/60Hz |
| Nominal Total Power Consumption | (at Nominal voltage 230V) 140W |
| Typical Current | (at Nominal voltage 230V) 1.363A |
| Power Plug Type | Seetronic PowerCON True |
